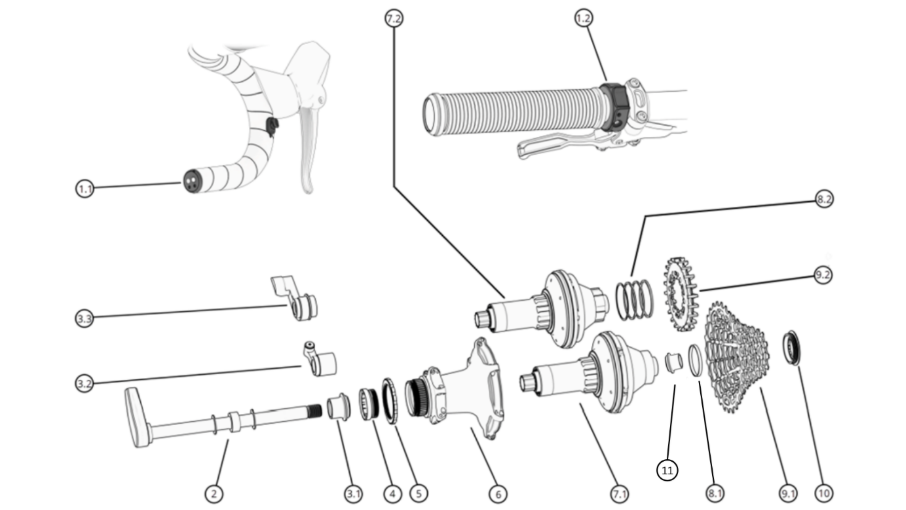

| No. | Part | Variant no. | Variant | Article number | Explanation |
| 1 | Handlebar unit | 1.1 | Wireless dropbar handlebar unit | HBU-0000-A00-A-00 | The wireless dropbar handlebar unit is installed into the left-hand side of the handlebar and is operated by a shifter or satellite buttons compatible with Classified. The dropbar handlebar unit is powered by a battery. |
| 1.2 | Wireless flatbar handlebar unit | RSH-0000-A00-A-00 | The wireless flatbar handlebar unit can be mounted on the left or right side of the right handlebar. The module is powered by a battery and charged by a pogo connector. | ||
| 2 | Smart thru axle | 2.1 | - |
A, 151,5mm: STA-AA00-A00-A-00 B, 155,5mm: STA-BA00-A00-A-00 C, 159,5mm: STA-CA00-A00-A-00 D, 163,5mm: STA-DA00-A00-A-00 E, 167,5mm: STA-EA00-A00-A-00 |
The smart thru axle receives the wireless shift signal from the handlebar unit and triggers the Powershift hub using contactless energy transfer. The smart thru axle is equipped with a rechargeable battery. The axle diameter is 12 mm. Different lengths are available for a perfect fit to any frame. Various threaded ends are available to fit the frame dropout. The threaded ends come in various thread sizes and lengths. |
| 3 | Brake-side end cap | 3.1 | Brake side end cap for ITS hub | 00004_01 | |
| 3.2 | With flatmount torque support |
TSA-4020-A00-B-00 TSA-4025-A00-A-00 TSA-4030-A00-B-00 TSA-4035-A00-A-00 TSA-6025-A00-A-00 |
This end cap seals the Powershift hub and provides flatmount torque support. Different torque supports are available for a perfect fit to any frame. Selecting and installing the correct torque support arm – Classified Cycling |
||
| 3.3 | With postmount torque support | TSA-000U-A00-A-00 | This end cap seals the Powershift hub and provides postmount torque support. Different torque supports are available for a perfect fit to any frame. | ||
| 4 | Hubshell lock ring | 4.1 | - | HLR-0000-A00-A-00 | The hubshell lock ring ensures that the hubshell is fixed to the Powershift hub. |
| 5 | Brake disc lock ring | 5.1 | - | CLR-00ET-A00-A-00 | The brake disc lock ring fixes the center lock brake disc to the Classified hubshell. |
| 6 | Hubshell | 6.1 | Hubshell 142 |
HBS-SPNB-A00-A-00 HBS-JBNB-A01-A-00 HBS-JBNB-A02-C-00 |
The hubshell is attached to the rim by spokes. You can equip multiple rims with a Classified hubshell and use them in combination with a single 142 Classified Powershift hub. NOTE Combination with a different Classified Powershift hub variant is not possible. |
| 6.2 | Hubshell 148 | HBS-SP0B-A00-A-00 | The hubshell is attached to the rim by spokes. You can equip multiple rims with a Classified hubshell and use them in combination with a single 148 Classified Powershift hub. NOTE Combination with a different Classified Powershift hub variant is not possible. | ||
| 7 |
Powershift hub Selecting the correct Powershift Hub
|
7.1 | Powershift hub 142 CD27 cassette interface | HUB-C142-D27-A-00 |
The Powershift hub 142 cassette interface contains the shifting mechanism and is controlled electronically. This hub is designed specifically for hubs with 142 mm O.L.D. and a 12 mm thru axle. The hub does not contain a battery and gets its shifting power from the smart thru axle. This hub can only be used with Classified cassettes. Please check our Lockring compatibility matrix- Powershift hub - lockring compatibility matrix to make sure you are using the correct lockrings. |
| 7.1 | Powershift hub 142 CD33 cassette interface (legacy) | HUB-C142-A00-A-00 |
The Powershift hub 142 CD33 cassette interface contains the shifting mechanism and is controlled electronically. This hub is designed specifically for hubs with 142 mm O.L.D. and a 12 mm thru axle. The hub does not contain a battery and gets its shifting power from the smart thru axle. This hub can only be used with Classified cassettes. Our CD33 interface is only compatible with 11T cassettes. Please check our Lockring compatibility matrix- Powershift hub - lockring compatibility matrix to make sure you are using the correct lockrings. |
||
| 7.2 | Powershift hub 142 9spline interface | HUB-B142-A00-A-00 |
The Powershift hub 142 9-spline interface contains the shifting mechanism and is operated electronically. This hub is designed specifically for hubs with 142 mm O.L.D. and a 12 mm thru axle. The hub does not contain a battery and gets its shifting power from the smart thru axle. The hub can be used with standard 9-spline belt sprockets or chainrings supplied by third parties. NOTE It is NOT possible to mount a standard cassette on this interface! Note: Classified does not sell singlespeed or beltdrive cogs. |
||
| 7.2 | Powershift hub 148 cassette interface (CD27) | HUB-C148-D27-A-00 | The Powershift hub 148 cassette interface contains the shifting mechanism and is controlled electronically. This hub is designed specifically for hubs with 148 mm O.L.D. and a 12 mm thru axle. The hub does not contain a battery and gets its shifting power from the smart thru axle. This hub can only be used with Classified cassettes. | ||
| 7.2 | Powershift hub 148 cassette interface (CD33, legacy) | HUB-C148-A00-A-00 |
The Powershift hub 148 cassette interface contains the shifting mechanism and is controlled electronically. This hub is designed specifically for hubs with 148 mm O.L.D. and a 12 mm thru axle. The hub does not contain a battery and gets its shifting power from the smart thru axle. This hub can only be used with Classified cassettes. Our CD33 interface is only compatible with 11T cassettes. Please check our Lockring compatibility matrix- Powershift hub - lockring compatibility matrix to make sure you are using the correct lockrings. |
||
| 7.2 | Powershift hub 148 9spline interface | HUB-B148-A00-A-00 | The Powershift hub 148 9-spline interface contains the shifting mechanism and is operated electronically. This hub is designed specifically for hubs with 148 mm O.L.D. and a 12 mm thru axle. The hub does not contain a battery and gets its shifting power from the smart thru axle. The hub can be used with standard 9-spline belt sprockets or chainrings supplied by third parties. NOTE It is NOT possible to mount a standard cassette on this interface! Note: Classified does not sell singlespeed or beltdrive cogs. |
||
| 8 | Center washer | 8.1 | Cassette center washer |
Centering ring CD33 (RSC-0000-A00-A-00) Centering ring CD27 to 11T cassette (CC Gen1 Cassette Adapter – 106.500-01) Centering ring CD27 (Radial Shim R10-40 106.458-01) |
This center washer ensures that the cassette seamlessly connects to the Powershift hub. Cassette - Powershift hub - lockring compatibility matrix – Classified Cycling |
| 8.2 | 9-spline spacer kit | SKT-BELT-A00-A-00 | The 9-spline spacer kit ensures that the 9-spline sprocket connects seamlessly to the Powershift hub. The spacer kit contains spacers in various thicknesses to achieve the optimal belt / chain line. | ||
| 9 | Cassette | 9.1 | Classified cassette |
C11-1130-A00-A-01 C11-1134-A00-A-01 C12-1130-A00-C-01 C12-1134-D00-C-01 C12-1134-B00-A-00 C12-1140-DE0-A-01 C13-1136-C00-A-01 C12-1036-D00-A-00 C12-1040-D00-A-00 C12-1040-F00-A-00 C13-1040-F00-A-00 |
The Classified cassette is mounted on the Powershift hub with cassette interface. Various cassettes are available. |
| 9.2 | 9-spline sprocket | Not available at Classified | The 9-spline sprocket is mounted on a Powershift hub with 9-spline interface. Various 9-spline sprockets are available. | ||
| 10 | Lock ring | 10.1 | Cassette lock ring |
Cassette lockring CD33 (CLR-0000-A00-A-00) Cassette lockring CD27: X11 (CLR-0000-X11-A-00) Cassette lockring CD27: X10 (CLR-0000-X10-A-00) Cassette lockring CD27: I10 (CLR-0000-I10-A-00) |
The cassette lock ring fixes the cassette to the Powershift hub. Cassette - Powershift hub - lockring compatibility matrix – Classified Cycling |
| 10.2 | 9-spline sprocket lock ring | The 9-spline sprocket lock ring attaches the 9spring sprocket to the Powershift hub. Color: silver | |||
| 11 | Drive side end cap | 11 | - |
CD33 axle end cap DS (00005_01) CD27 axle end cap DS (106443) |
The drive side end cap protects the bearings from dirt and moist and must be installed on all hub types. CD33 and CD27 Powershift hubs use different end caps. The 9-spline hubs use the CD33 axle end cap DS (00005_01). |
